History of Darjeeling Himalayan Railway




The Background


While the tea gardens had placed Darjeeling prominently on the map of world economy, the romantic saga of toy train deeply touched the heart of people all over the world. And this story dates back to the 1800s. By 1870s, Darjeeling had already become a well known hill station and a health resort.

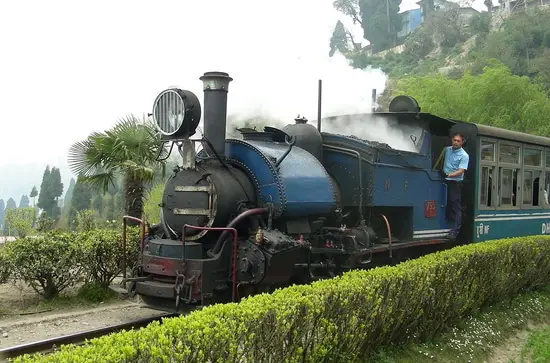

Baby Sivok, Oldest DHR steam engine built in 1880s
Baby Sivok Toy Train Engine

India was then under the British colonial rule. Many Englishmen and their families, mostly from Calcutta (now Kolkata) would flock towards Darjeeling on vacations. As a result the traffic started increasing heavily in this part of the country. After all it was a beautiful scenic place with great weather.

Initially for several years, it used to be a long tedious journey from Kolkata that took well over two weeks to reach Darjeeling. One needed to take a 219-miles journey up to Sahibgunj in a steam engine hauled train. The train was run privately by the Eastern Bengal Railways (EBR).

From here one needed to cross over the Ganges river by a steamer, then take a bullock cart up to a point for another river crossing, and then again a bullock cart all the way up to Siliguri for over 100 miles. From Siliguri, the visitors had to once again take a bullock cart or a horse carriage (Tonga) to reach Darjeeling hill town which itself took about two days.



Subsequently, the privately owned EBR extended the lines from Calcutta up to Damukdia located at the southern bank of Ganges (Padma) river. Damukdia is now part of Bangladesh. This broad gauge line had a stretch of 119 miles.

From Damukdia, one had to cross over the Ganges to Sara Ghat at the opposite bank. However the EBR refused to lay the lines from Sara Ghat all the way up to Siliguri.

So the Government owned Northern Bengal Railways (NBR) had to lay 210 miles of railway lines on the opposite bank and finally completed the remaining stretch in 1878.

From that time onwards the journey up to Siliguri could be completed in less than 24 hours, but the ascend to Darjeeling still remained a huge problem. Neither EBR nor NBR wanted to take on the steep hills of Darjeeling.

Baby Sivok Engine
Baby Sivok Engine

NOTE: A steel railway bridge known as Hardinge Bridge (also known as Sara Ghat Bridge) was constructed later in 1912 at Sara across the Ganges. This railway bridge was named after Lord Hardinge who was then the Viceroy of India. Trains started operating over the bridge in 1915 and eliminated the ferry crossing, thus further reducing the travel time significantly.


The Idea of Toy Train


The genesis of the Toy Train in Darjeeling started when Franklin Prestage, an agent of the Eastern Bengal Railways first visited Darjeeling in 1878. He felt the real need of a railway that would connect Siliguri with Darjeeling hill station.

Franklin submitted a proposal to the Government for a privately run train to the hills that would run on a 2-foot wide track (now known as narrow gauge) mostly in parallel to the Hill Cart Road.

His proposal mentioned many advantages, the main one being without the railway connection, the travel cost was so high that rice in the hills would cost about 2.5 times more than the plains.

The proposal was actively supported by the Lieutenant Governor of West Bengal (Sir Ashley Eden) and was readily accepted by the government. Next year in 1879, the government allowed the formation of the private company Darjeeling Steam Tramway Company to privately manufacture, own and eventually run the steam engine hauled trains to Darjeeling.


The Construction Work


The railway and track construction work began in the same year. However the name of the company was changed to Darjeeling Himalayan Railway (DHR) Company two years later (i.e. in 1881). It was an extremely difficult job to lay the lines along such steep gradients of the hills.

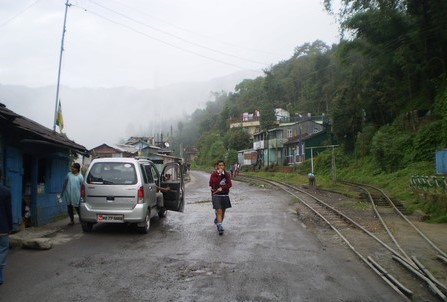

DHR Track between Kurseong and Ghum (near Tung)
DHR Track, Darjeeling

Those days, there was no other examples to draw upon. The sharpest curve along the track has a radius of 69 feet, and the average gradient (slope) is 1:29. Some great innovative ideas eventually resulted in great engineering marvels of all times and solved many problems. I'll come to that in a short while.

The trains later became known as toy trains as the loco engines and the coaches were far smaller than normal broad gauge trains. But there was no such thing as toy railway construction.

It was like any other proper railway project, but much more complex because of the terrain. The narrow gauge line did restrict the weight and size of the engines. The steel tracks weighed some 18.6kgs per yard and were laid on wooden sleepers.

By March 1880, the first stretch of 31kms between Siliguri Town and Tindharia was completed. By August 1880, the next 21kms stretch up to Kurseong was done. By February 1881, Sonada which is 15kms away was also linked.

By April 1881, Darjeeling Himalayan Railway reached Ghum further 10kms away and at an altitude of 7,407 ft which still remains as the highest railway station in India. And on 4th July, 1881 the last stretch of 6kms too was completed and the toy train rolled into Darjeeling with great pride, a major milestone was finally achieved.

On March 4, 1881, the Viceroy of India Lord Lytton formally inaugurated the Darjeeling Himalayan Railway by riding the first leg of the journey from Siliguri to Tindharia. He was accompanied by his wife Lady Lytton who was known to wear highly fashionable hats.

The main man behind implementation of such a novel railway was Franklin Prestage, the agent of Eastern Bengal Railways who moved the proposal to the government.

If you ever visit the cathedral at the Loreto Convent School of Darjeeling, you will see a plaque that has inscription memorializing him as the "Founder of Darjeeling Himalayan Railway Company.". This plaque was laid by his widow and children when he died on 18th October 1897 near Simla.


The Engineering Marvel behind DHR


Now lets delve into the engineering ingenious in laying the Darjeeling Himalayan Railway tracks along the steep mountains. There were several innovative engineering designs used. However, three such ideas stand out from the rest.

One of the major problems was the steep gradients at several places which the trains could not simply negotiate. A great engineering feat was to create a Double Loop at Chunbhatti and a Single Loop at 'Agony Point' to gain height at ease.

The same design was later extended to create the famous Batasia Loop shortly after Ghum to negotiate a steep descent.

Picture of Agony Point taken at DHR Museum, Kurseong
Agony Point Darjeeling

The second great idea came up while encountering unmanageable gradients where even loops were not possible. The frustrated contractor Herbert Rumsey who was laying the railway tracks shared the problem with his wife while ball dancing with her.

She innocently replied "If you can't go forward, why don't you go back darling" meaning that a reversal is permitted in a ball dance if one gets tucked into a corner. This simple idea resulted in the creation of Z Reversals or Zigzags. The train goes several yards backwards and then takes a run up along a different track to gain elevation.

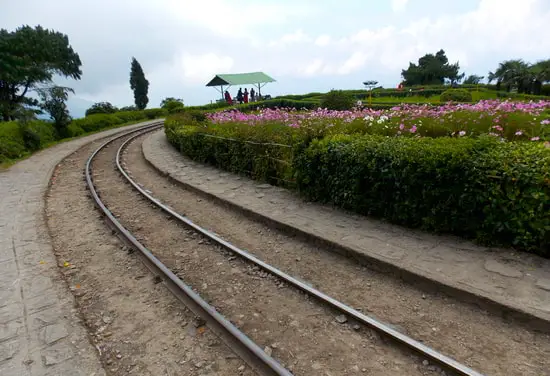

Batasia Loop Darjeeling
Batasia Loop Darjeeling

There is another romantic version to the above idea. In response to a husband's letter who was a construction engineer at the Darjeeling Himalayan Railway, the wife wrote back "If you can't go forward, come back..". She actually meant that if he couldn't move forward with his job then it would be better for him to get back to England. Many say that this letter served as the genesis of zigzags.

The third amazing fact was that no tunnels were created through the mountains. Although after the 1934 earthquake a small tunnel had to be created near Chunbhatti, that too was abandoned after the 1968 landslides.

By 1944, the Darjeeling Himalayan Railway (DHR) had 39 steam engine locomotives in working condition and a workforce of over 2000. The DHR workshop at Tindharia had 17 lathes and many other machines that could handle all types of technical problems and maintenance of the engines and the coaches.

However, much of that is now gone. In fact those days the DHR had a great soccer team known as TREFA which too was later disbanded.

Steam Engine DHR Toy Train at Batasia Loop, Darjeeling
Toy Train Darjeeling

After India's independence, it was known that curtain was to come down on the private ownership of Darjeeling Himalayan Railway. On 20th October 1948, DHR was bought out and taken over by Government of India. James Shaw was the last English General Manager of the DHR.

Although most of the Englishmen working in the DHR were offered jobs at one third of their earlier salaries, none took up the offers. On 15th January 1958, the DHR was handed over to Northeast Frontier Railway (NFR). On 2nd December 1999, UNESCO conferred the World Heritage Site status to DHR which became only the second railway in the world to receive such status.


Quick Facts


Total track length of DHR: 88kms.
Number of stations on the route: 12
Number of curves: 873
Sharpest curve: Has a radius of 69 feet
Steepest gradient (slope): 1 in 18
Roll gradient: 1 in 22.5 (indicates how much the train rolls during a curve maneuver)
Number of bridges: 554
Number of loops: 3
Number of Z reverses: 6


Exhibits and Artifacts at the DHR Museums


Soon after the DHR received the UNESCO World Heritage Status in 1999, a DHR Museum was opened in Ghum Station premises in the year 2000. The museum has both outdoor exhibits as well as indoor exhibits and artifacts.

DHR Ghum Museum Entry

Outdoor exhibits include 'Baby Sivok', one of the oldest steam engine locos that operated on the track, an old passenger coach, 4-wheeld vans that were used for carrying goods, a 4-wheeled trolley that was used for track maintenance work, and more.

The indoor museum exhibition room is located upstairs in the station building. It has many collections and photographs including those donated by the ex-DHR employees. You can visit the Ghum DHR Museum and see the exhibits from the old days.

There were two other DHR Museums created, one is the Kurseong DHR Museum which is located in one of the rooms in the Kurseong station platform and the other is the Sukna DHR Museum located at Sukna station upstairs in the gabled station building.


The DHR Toy Train Route


The original track distance was 83kms starting from Siliguri. Later the line was extended beyond Siliguri up to New Jalpaiguri by 5kms making the total track length to 88kms.

For the end-to-end run between New Jalpaiguri to Darjeeling, the steam locomotives have now been replaced with diesel locomotives for better speed and efficiency.

The earlier steam engine hauled toy trains took nearly 10 hours to complete the journey while the more efficient diesel engine hauled toy trains take about 7 & half hours to complete the end-to-end journey. However, the steam engine hauled trains are still available for shorter round-trip joy rides from Darjeeling

Diesel Engine hauled DHR Toy Train
Darjeeling DHR Toy Train

There are a total of 12 stations in the entire route of DHR, and they are New Jalpaiguri, Siliguri Junction, Sukna, Rangtong, Tindharia, Gayabari, Mahanadi, Kurseong, Tung, Sonada, Ghum and Darjeeling.

Note that this is the only route of DHR Toy Train and there are no other DHR routes, although there are DHR toy train services that run for shorter distances between pairs of stations but on this same track (for example, there are separate train services between Kurseong and Darjeeling).

Check out Toy Train Route to get a complete description of the DHR route and the experience of the journey as you move up from the lower plains towards the Himalayan grandeur.


DHR Toy Train Joyrides & Passenger Services


So now you know why Darjeeling Himalayan Railway or the "Toy Train" as it is fondly called, has been the romantic heart of Darjeeling and its people. It has always been a joy to residents and visitors alike since it rolled into Darjeeling on 4th July 1881.

If you want to soak in that joy and like to ride the train, you can go to Darjeeling and take a round-trip joyride from Darjeeling station to Ghum. These are tourists' trains and there are options to avail a train hauled by either a diesel engine or the old heritage steam engine.

There are several daily round trips made by these toy trains between Darjeeling and Ghum with stops at Batasia Loop and Ghum Station. However, for authentic experience, you should choose the steam engine train. But due to high maintenance costs, the steam engine rides are much costlier.

Check out DHR Toy Train Rides & Services to know all about the joy rides and regular services of DHR.
